Q1)AFTER CONNECTING  ALL THE CONNECTIONS OF THE CONTROLLER AND THE MOTOR, THE MOTOR DOES NOT RUN?

Q1)AFTER CONNECTING  ALL THE CONNECTIONS OF THE CONTROLLER AND THE MOTOR, THE MOTOR DOES NOT RUN.

A1)   CHECK THE CONNECTIONS OF:-

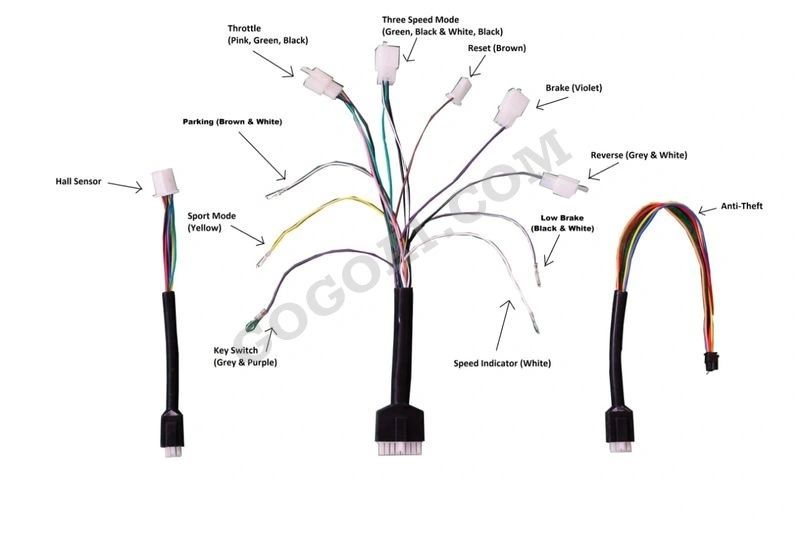

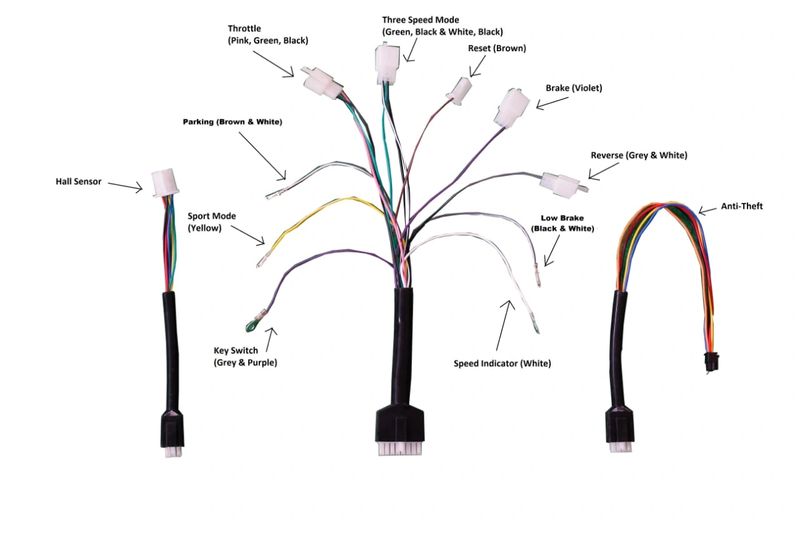

   1)THROTTLE – CHECK WETHER ALL THE WIRES ARE MATCHED ACCORDING TO THE COLOURS.


2) HALL-EFFECT SENSOR:- CHECK WETHER ALL THE WIRES ARE MATCHED ACCORDING TO THE COLOURS.

ALSO CHECK FOR ANY LOOSE CONNECTIONS

3)PHASE-MOTOR WIRES:- CHECK WETHER ALL THE WIRES ARE MATCHED ACCORDING TO THE COLOURS.


ALSO CHECK FOR ANY LOOSE CONNECTIONS.

4)KEY SWITCH:- CHECK WETHER THE KEY SWITCH CONNECTION IS SHOT TOGETHER.

                                                OR

CONNECTED TO A KEY SWITCH. CHECK WETHER ALL THE WIRES ARE MATCHED ACCORDING TO THE COLOURS.


Q2)EVEN AFTER PROPER CONNECTIONS, THE MOTOR DOES NOT WORK?

Q2) EVEN AFTER PROPER CONNECTIONS, THE MOTOR DOES NOT WORK.

A2) CHECK-

   1)THE BATTERY IS CHARGED ABOVE ITS CUT-OFF VALUE.

   2)CONNECT THE AUTO-LEARNING CONNECTION( IF THE CONTROLLER HAS IT) AND LET THE MOTOR RUN FOR 5-10

       SEC(I.E IF THE MOTOR STARTS RUNNING)

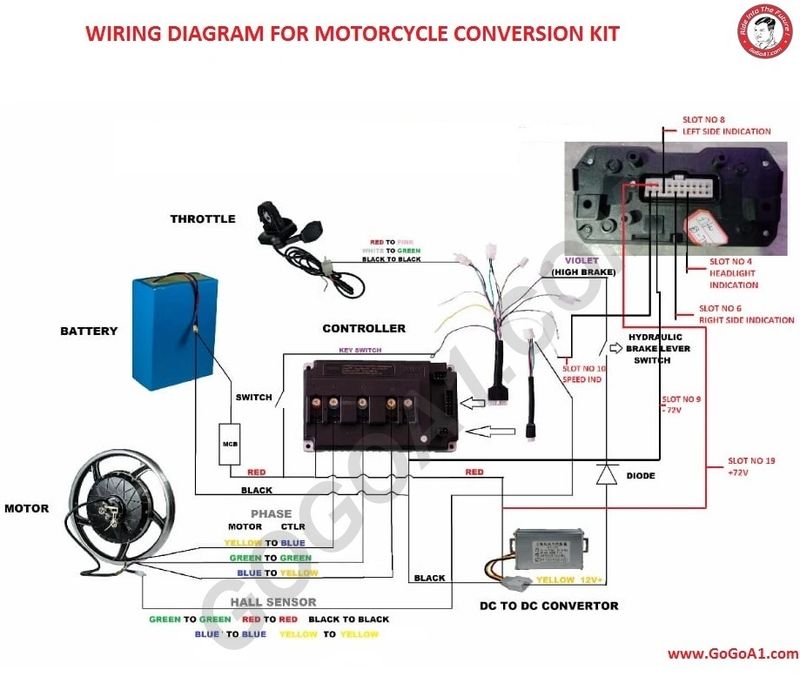

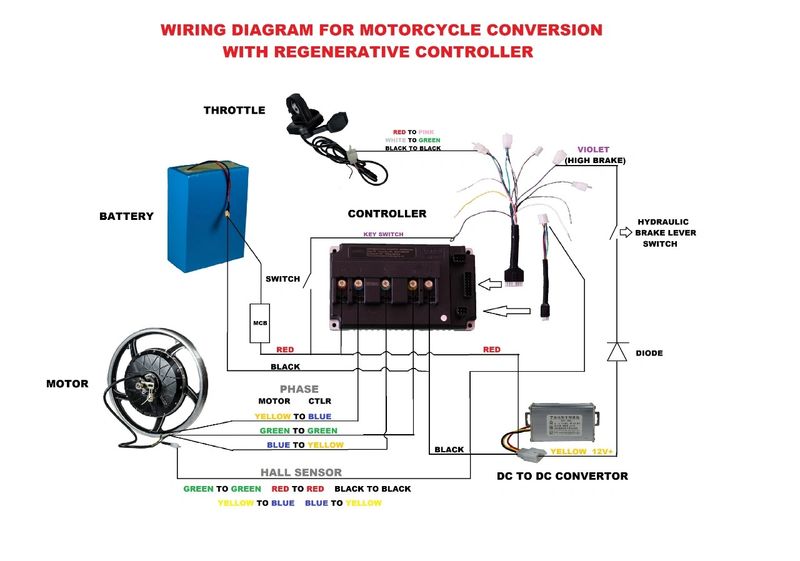

   3)INTERCHANGE THE PHASE-MOTOR CONNECTIONS LIKE SHOWN BELOW-

      a.YELLOW-YELLOW; GREEN-BLUE; BLUE GREEN.


   b. BLUE-BLUE; YELLOW-GREEN; GREEN-YELLOW.


   c.GREEN-GREEN; YELLOW-BLUE; BLUE YELLOW.


   d.  YELLOW-BLUE; BLUE-GREEN; GREEN-YELLOW.

THE MOTOR SHOULD RUN ON ANY ONE OF THESE COMBINATIONS.


Q3) HOW TO CHANGE THE DIRECTION OF MOTION OF THE MOTOR?.

TO A3)TO CHANGE THE DIRECTION OF THE MOTION OF THE MOTOR (I.E FROM CLOCKWISE TO ANTI-CLOCKWISE OR VICE-VERSA),

1.      CONNECT THE AUTO-LEARNING WIRES TOGETHER.


2. LET THE MOTOR RUN FOR 5-10 SEC, ON AUTO-LEARNING MODE.

3.THEN DISCONNECT THE AUTO=LEARNING WIRES AND OPERATE THE MOTOR WITH THE THROTTLE.

4. YOU WILL GET THE DESIRED DIRECTION OF MOTION OF THE MOTOR.
