2WD 3000W Hub Motor Light Electric Car Conversion Kits

390,000.00 300,000.00
This item is out of stock

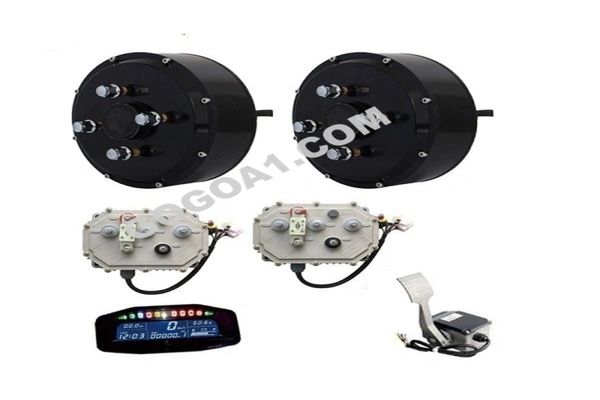

72V 6000W 90KMH Small Electric Car Hub Motor Conversion Kits, 2 x 3000w Single Shaft Car Hub Motor and 2 Controller

*AVAILABLE  ON PRE ORDER DISPATCH AFTER  2 months

Order placed will be dispatched within 45-60 days of placing the order.

The parts list as follows,

2 pcs x 205 3000W 50H  E-Car Hub Motor
2 pcs x  Controller
1 pcs x Throttle Pedal
1 pc  x  Speedometer
1 set x 1 tow 2 Hydraulic Disc brake system

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Single axle out without rim
3. PCD for rim installation: 4 x100mm
4. CB:60MM
5. Magnet Height: 50MM
6. No. of Pole Pairs: 16 pairs
7. Rated Power: 3000W V3
8. Peak Power: 5000W
9. Rated Voltage: 72V( 48-96V Can be optional)
10. Speed: 80km/h (30-100km/h can be customized)
11. Max No-load RPM: 1100RPM
12. Max Torque: 180N.M
13. Max Efficiency: 90%
14. Continuous current:45A
15. Max current:80A (Peak 100A in short time)
16. Brake type: Disc brake
17. Winding Core material: Aluminium
18. Cross Section of Phase wire: 10 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Max. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP54
23. Color: Black or Silver
24. N.W./ G..W. : 15kgs / 16kgs
25. Package Size: 34*34*33CM



QS 205 72V 6000W 90KMH Small Electric Car Hub Motor Conversion Kits, 2 x 3000w Single Shaft Car Hub Motor and 2 Kelly Controller

2. Programmable Sine Wave Controller Kelly with Brake Regenerative Function

100A continuous current, 300A phase current.
The size is 194mm*126mm*86.8mm
Net weight: 1.82kg
It’s no problem to be used in max. speed 80km/h car
Package: Carton
Including: 1 controller+1 Z-TEK USB TO RS232 cable + Some plugs
Included the fuse on the case
IP67

KLSH

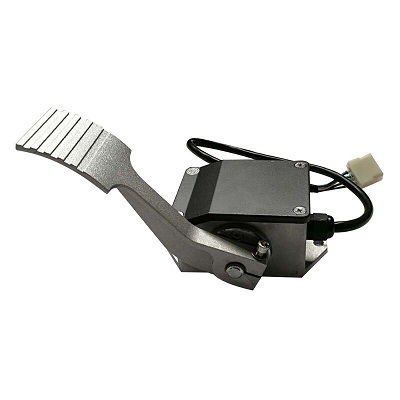

3. 0-5V Electric Car Throttle Pedal



Throttle Pedal Hall type : JKH model (match with our motor & controller)

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V

Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage

4. 48-100V Programmable Electric Car Speedometer

Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor
