Delivery: After 100 Days

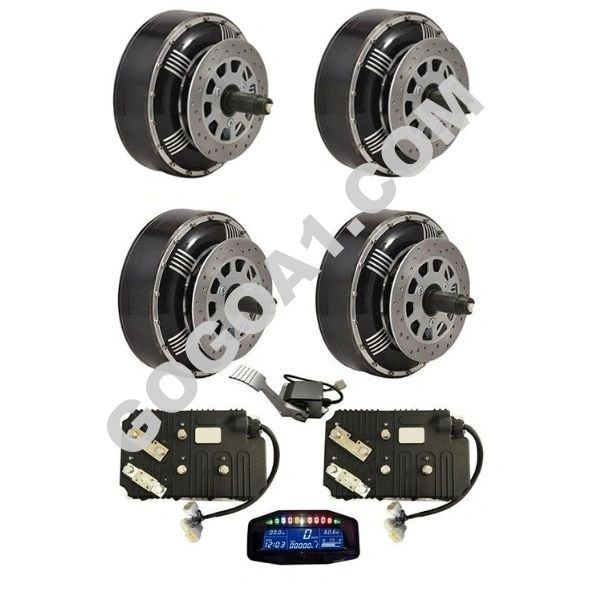

4WD  Motor Electric car Conversion Kits 96V

 The kits as follows,

4units x 8000W 50H Electric Car Hub Motor

4units x Kelly

1unit x Pedal Throttle

1unit x Free Speed Meter

Note:

1. The kits did not include the battery and disc brake set

2. The motor kits suit the vehicle total load under 1000kgs, max.speed about 80-130kph driven by the 96V battery

3. Please contact the seller if you have future questions

Key Features,

1. The application of a hub motor can greatly simplify the structure of the vehicle. Traditional clutches, gearboxes and transmission shafts will no longer exist. This also means saving more space.

2. The Daul Controller has been assembled together with the Main contactor on the Alu. plate, so it will be much easier for play and connection

3. Control box combines forward, reverse, master switch and other functions

4. Regenerative Function is available

Items details:

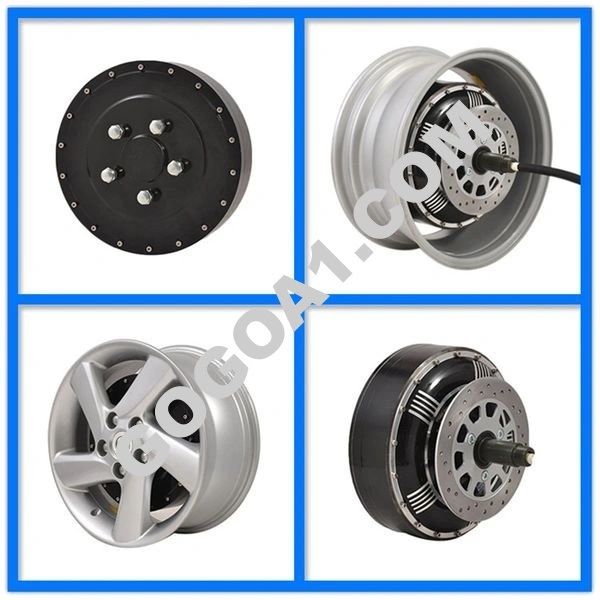

 1.  273 Car Hub Motor(50H) 8000W V3 Type

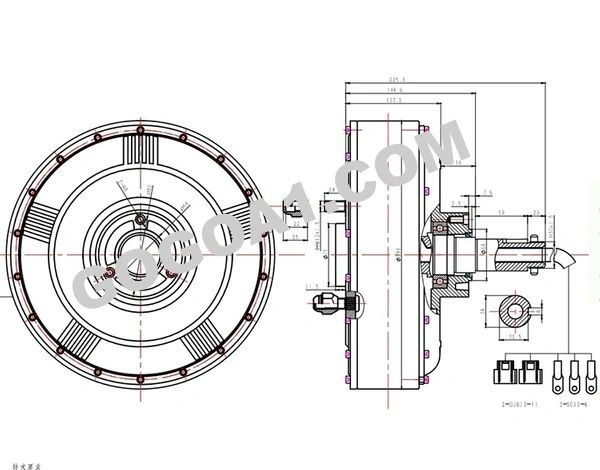

 Motor Specification:

1.    Motor Type: BLDC Hub Motor with Permanent Magnet

2.    Motor design: Single axle out without rim

3.    PCD for rim installation: 4 x100mm(As default), 5×114.3mm or 5 x 112mm(Can be customs)

4.    CB:60MM or 70MM

5.    Magnet Height:50MM

6.    Pole Pairs: 16 pairs

7.    Rated Power: 8000W

8.    Peak Power: 16000W

9.    Rated Voltage: 72V as default, can be customs 96V

10.  Max Torque: 250N.M

11.  Max Efficiency: 90%

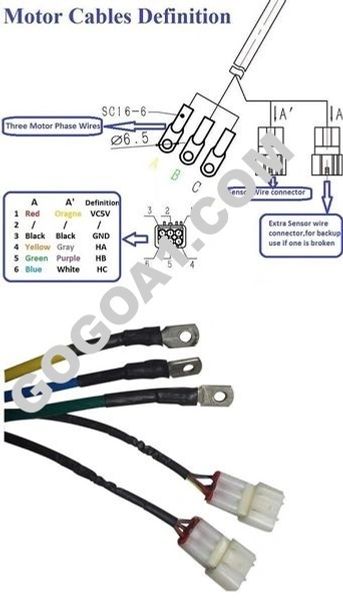

12.  Cross Section of Phase wire: 16 mm2

13.  Hall sensor phasing angle: 120 degree

14.  Temperature Sensor: Available

15.  Max. Working Temperature: 70 degrees, Peak 120 degree

16.  Waterproof Grade: IP54

2. 24V-96V,500A, BLDC MOTOR CONTROLLER

Matching Motor type: BLDC Motor with Hall sensor

Matching Motor power: 7000W-8000W

3. 0-5V Electric Car Throttle Pedal

 Throttle Pedal Hall type : JKH model (match with our motor & controller)

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V

Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

 4. 48-100V Programmable Electric Car Speedometer

Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor
