• GoGoA1 17inch E-Motorcycle In-Wheel 5000W Hub Motor Drive Train for R & D & OEM Supply

    80,500.00 40,000.00

    This item is out of stock

    Note: CMVR & RTO Approval is the customer's responsibility & we are not responsible for any use of components.

    We are a component supplier, while using them you have to take relevant permissions.


    Order placed will be dispatched within 45-60 days of placing the order.

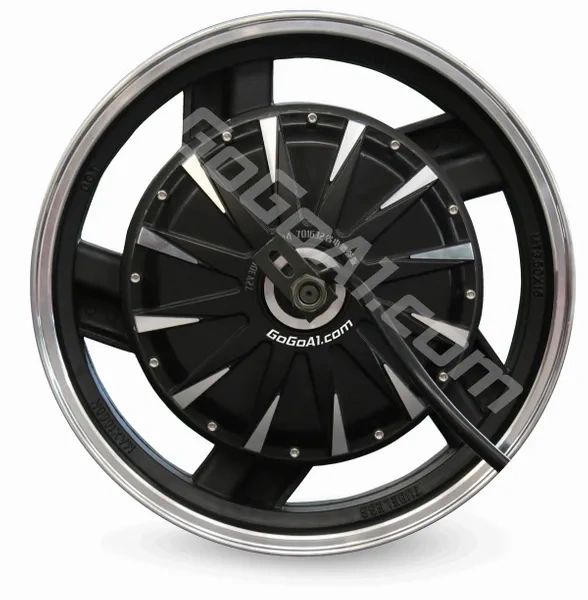

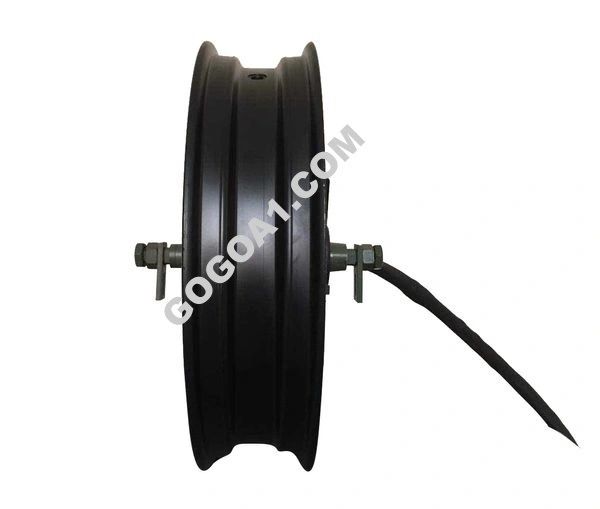

    17inch 273 E-Motorcycle In-Wheel Hub Motor(45H) 5000W

     17inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

     Motor Specification:

     1.    Motor Type: BLDC Hub Motor with Permanent Magnets

    2.    Motor design: Double axle out with 17inch Aluminium rim

    3.    Rim size:3.5×17

    4.    Matching Tire: 120/70-17

    5.    Magnet Height: 45MM

    6.    of Pole Pairs: 28 pairs

    7.    Rated Power: 5000W

    8.    Max Power:7200W(Peak 10000W)

    9.    Rated Voltage: 72V( 60V-144V Can be optional)

    10.  Speed: 100km/h (30-100km/h can be customized)

    11.  Max No-load RPM:1000RPM

    12.  Max Torque: 230N.M

    13.  Max Efficiency: 88%

    14.  Continuous current:78 A

    15.  Max current:120A ,Peak 170A

    16.  Brake type: Disc brake

    17.  Rear Fock width for installation: 200mm

    18.  Winding Core material: Aluminium

    19.  Cross Section of Phase wire: 16 mm2

    20.  Hall sensor phasing angle: 120 degree

    21.  Temperature Sensor: Optional

    22.  Working Temperature: 70 degree, Peak 120 degree

    23.  Waterproof Grade: IP54

    24.  W./ G..W. : 21kgs / 22kgs

    25.  Package Size: 58*58*40CM
