• GoGoA1 2000W Hub Motor Electric Car Drive Train Kit for R & D & OEM Supply

    150,000.00 95,000.00

    This item is out of stock

    Note: CMVR & RTO Approval is the customer's responsibility & we are not responsible for any use of components.

    We are a component supplier, while using them you have to take relevant permissions.

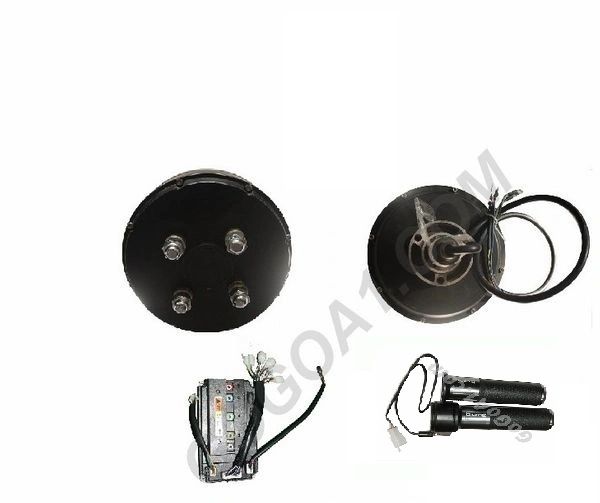

    Electric Car Hub Motor Conversion Kit

    The parts list as follows,

    2 pcs x 2000W  E-Car Hub Motor
    2 pcs x  EM- 100 65A Controller
    1 Pedal

    Motor Specification:

    1. Motor Type: BLDC Hub Motor with Permanent Magnet
    2. Motor design: Single axle out without rim
    3. PCD for rim installation: 4 x100mm
    4. CB:60MM
    5. Magnet Height: 50MM
    6. No. of Pole Pairs: 16 pairs
    7. Rated Power: 2000W
    8. Peak Power: 4000W
    9. Rated Voltage: 72V( 48-96V Can be optional)
    10. Speed: 80km/h (30-100km/h can be customized)
    11. Max No-load RPM: 1100RPM
    12. Max Torque: 180N.M
    13. Max Efficiency: 90%
    14. Continuous current:45A
    15. Max current:80A (Peak 100A in short time)
    16. Brake type: Disc brake
    17. Winding Core material: Aluminium
    18. Cross Section of Phase wire: 10 mm2
    19. Hall sensor phasing angle: 120 degree
    20. Temperature Sensor: Optional
    21. Max. Working Temperature: 70 degree, Peak 120 degree
    22. Waterproof Grade: IP54
    23. Color: Black
    24. N.W./ G..W. : 15kgs / 16kgs
    25. Package Size: 34*34*33CM

    Controller Specification:

    Operating Voltage       : 72v

    Lower Cutoff Voltage  : 66V
    Upper Cutoff Voltage  : 89V
    Rated Current              : 65A
    Peak Current                : 100A
    Waveform Type            : Sinusoidal
    IP Rating                       : IP 67

    Note: GST Extra At Actual
