• GoGoA1 36V 250W Magnesium Wheel Hub Motor Electric Bicycle Conversion Kit Drive Train for R & D & OEM Supply

    20,000.00 7,500.00

    Note: CMVR & RTO Approval is the customer's responsibility & we are not responsible for any use of components.

    We are a component supplier, while using them you have to take relevant permissions.




    This mini conversion kit will provide you with the ability to transform your existing traditional bicycle into the electric one.


     Parameters


     Specifications


    Construction

    Gear drive: BLDC hub motor with inbuilt planetary gear box

    Wheel Diameter (inches)

    26

    Rated Voltage (DCV)

    36

    No Load (rpm)

    290;250

    Rated Power (W)

    250

    Max Torque

    32 N.m

    Efficiency

    83.5%

    Noise Grade (dB)

    <55

    Operating Temperature

    -20 to 45

    Reduction Ratio

    1:4.42

    Color

    Black

    Application

    Electric bicycle,


    Mounting Parameters


    Brakes

    Disc Brakes

    Max Housing Diameter (mm)

    134

    Cabling Route

    Shaft Side, Ride

    Cable Length (mm), Connection Type

    250

    Magnesium wheel diameter

    26 inch







    Dimensions

    Dimension A

    77.3 mm

    Dimension B

    43 mm

    Dimension C

    Ф136 mm

    Dimension D

    Ф122 mm

    Dimension E

    Ф44 mm

    Dimension F

    Ф33 mm

    Dimension G

    2-M12 x 1.25 – 6g

    Dimension H

    5.5 mm

    Dimension I

    22 mm

    Dimension J

    9 mm

    Dimension K

    1 3/8 – 24 UNF -2A

    Dimension L

    15.25 mm

    Dimension WL

    62 mm

    Dimension WR

    73 mm

    Dimension OLD

    135 mm



    2. Magnesium Wheels

    Bicycle 26’’ Magnesium Alloy Wheel


    Size

    26 inch

    Material

    AZ91D magnesium alloy

    Wall Thickness

    4.4 mm

    Contour Size

    99 mm x 93 mm x 60 mm

    Weight

    1450 g (1 wheel)

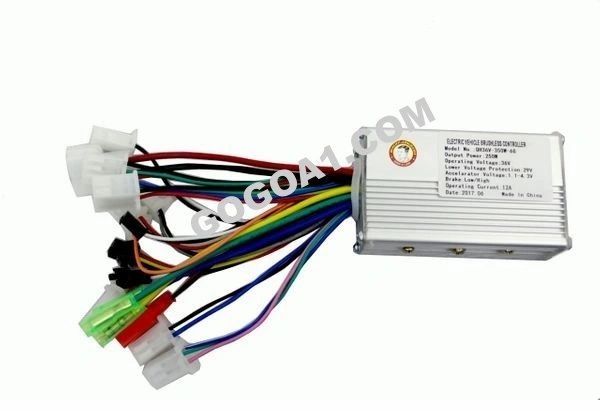

    3. Controller Specification

         Rated Voltage  : 36V

         Rated Power    : 250W

         Rated Current  :  15 A

        Waveform Type : Square Wave

         Braking             : Low ABS


    How to fit the conversion kit?

    Motor – it depends on the type of wheel. It is easy to fit Magnesium wheel hub– all you need is to replace your back wheel with the magnesium hub motor wheel.

    For fitting spoke wheels bicycle with the hub motor, you have to remove spokes from the wheel, place the motor and then put the spokes back.

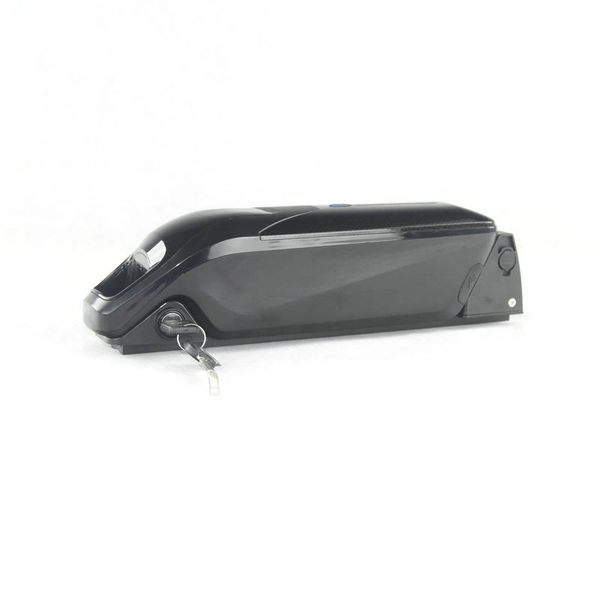

    Controller and Battery box placing fully depends on your personal preferences.


    Note: GST  not included in the price.
