• GoGoA1 48V BLDC High Efficient Hub Motor With Tyre for R & D & OEM Supply

    12,000.00 5,990.00

    Note: CMVR & RTO Approval is the customer's responsibility & we are not responsible for any use of components.

    We are a component supplier, while using them you have to take relevant permissions.




    GoGoA1 BLDC High Efficient Hub Motor With Double Wall, Aluminium Alloy rim, Tubeless, and Airless Tyre.


    Mechanical Parameters

    Wheel Diameter 24 inch
    Position Rear
    Spoke Size 2mm
    Number of  Holes 36
    Rim Color Green
    Cable Length ~1m
    Cable Diameter 6sqmm
    Applications Electric Bicycle/Ebike


    Electrical Parameters

    Rated Voltage(DCV) 48V
    Rated Power 250W
    Peak Power 500W
    Continuous Current ~7.3A
    Load Current ~15.7A
    no(rpm) 404
    Regenerative Yes
    Max Torque 60NM

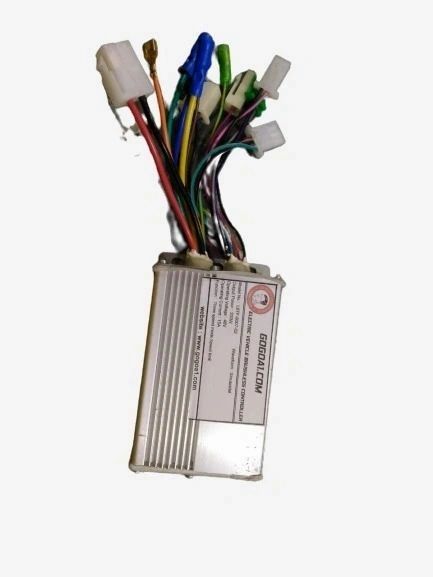

    Controller Specifications

    GoGoA1 48V 23A  450W controller




    Output Power  450W
    Operating Voltage 48V
    Operating Current 23A

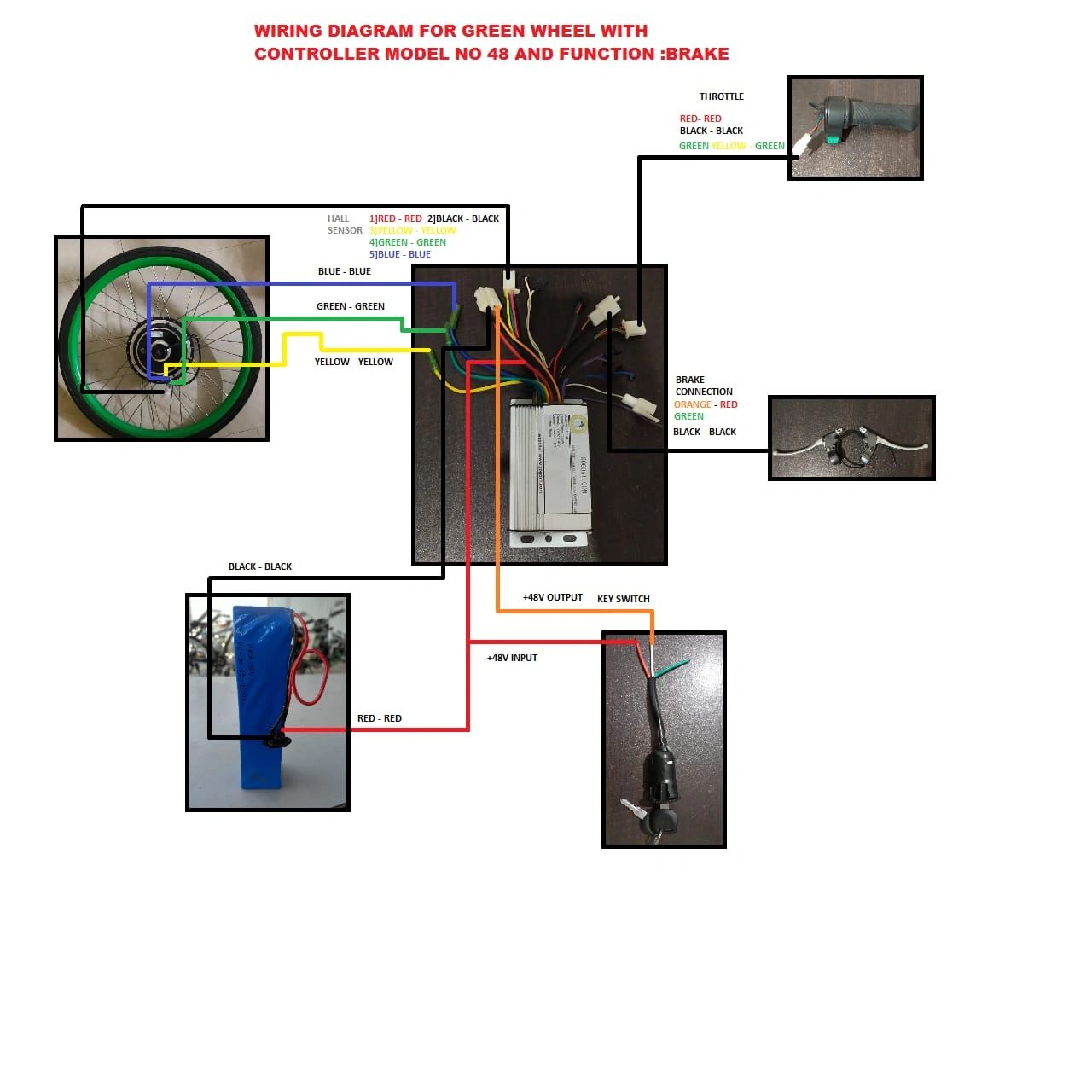

    How To Fit The Conversion Kit?

    Motor – it depends on the type of wheel. It is easy to fit the Magnesium wheel hub– all you need is to replace your back wheel with the magnesium hub motor wheel.

    For fitting spoke wheels bicycle with the hub motor, you have to remove spokes from the wheel, place the motor and then put the spokes back.

    Controller and Battery box placing fully depends on your personal preferences.


    GST is Charges Extra At Actual
