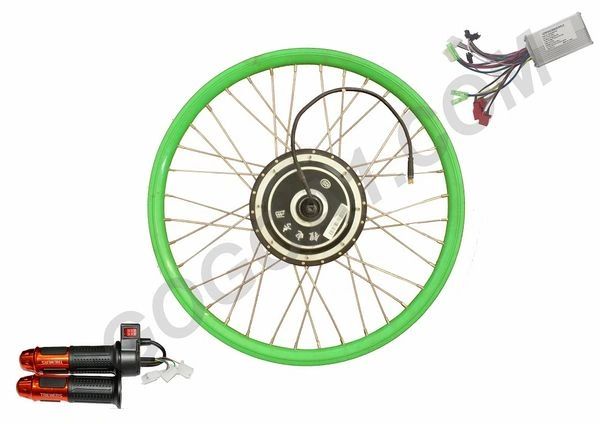

• GoGoA1 BLDC Regenerative Reverse Function High Efficient Hub Motor Without Tyre

    11,300.00 7,950.00
    Free Shipping!

    Available for Business Associates

    GoGoA1 BLDC Regenerative Reverse Function High Efficient Hub Motor With Double Wall, Aluminium Alloy Rim.

    Mechanical Parameters

    Wheel Diameter 24 inch
    Position Rear
    Spoke Size 2mm
    Number of  Holes 36
    Rim Color Green
    Cable Length ~1m
    Cable Diameter 6sqmm
    Applications Electric Bicycle/Ebike

    Electrical Parameters

    Rated Voltage(DCV) 48V
    Rated Power 350W
    Peak Power 500W
    Continous Current ~7.3A
    Load Current ~15.7A
    no(rpm) 404
    Regenerative Yes
    Reverse Operation yes
    Max Torque 60NM

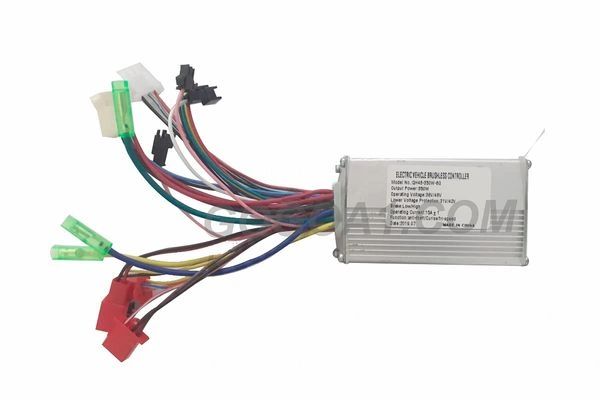

    Controller Specifications

    GoGoA1 36/48V 17A 350W ( Auto Learning, Antitheft, 3 speed)

    Output Power  350W
    Operating Voltage 36v/48V
    Operating Current 15A
    Function Auto Learning, Antitheft, 3 speed

    How To Fit The Conversion Kit?

    Motor – it depends on the type of wheel. It is easy to fit Magnesium wheel hub– all you need is to replace your back wheel with the magnesium hub motor wheel.

    For fitting spoke wheels bicycle with the hub motor, you have to remove spokes from the wheel, place the motor and then put the spokes back.

    Controller and Battery box placing fully depends on your personal preferences.

    GST Charges Extra At Actual.
