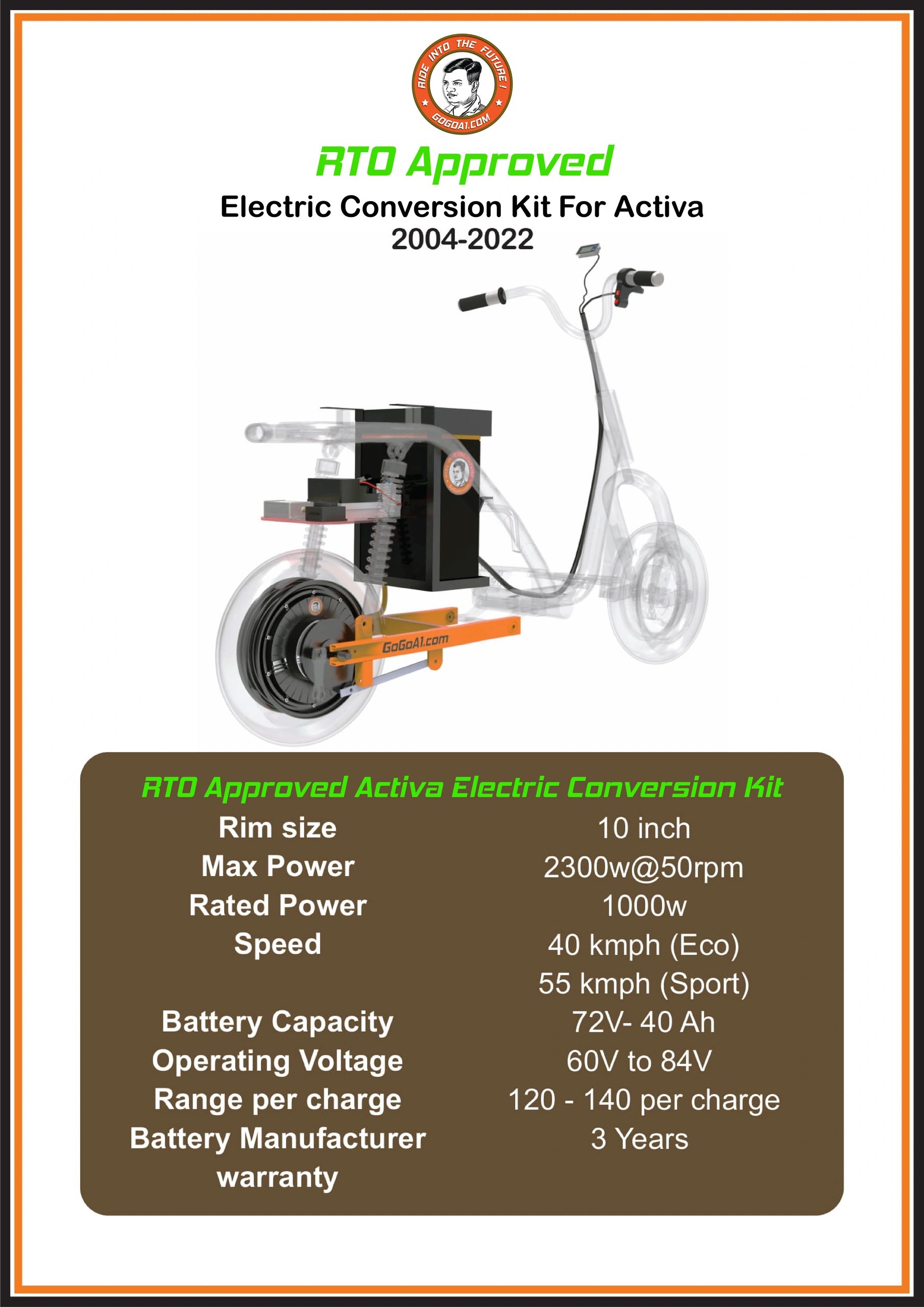

GoGoA1 RTO Approved Electric Conversion Kit for Activa with 10 inch 72V 1200W high efficient BLDC Hub Motor for Electric Conversion, R & D & OEM Supply

Specification

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 10inch rim

3. Rim size and material:2.15-10 Iron rim

4. Matching Tire: 3.0-10, 3.5-10

5. Magnet Height: 35MM

6. Pole Pairs: 23 pairs

7. Rated Power: 1200W

8. Max Power: 2000W

9. Rated Voltage: 72V

10. Speed: 45-50km/hr

11. Max No-load RPM: 620-650RPM

12. Max Torque: 98N.M

13. Max Efficiency: 89-90%

14. Rated current:23A

15. Max current:40A

16. Brake type: Drum brake

17. Rear Fork width for installation: 200mm

18. Cross Section of Phase wire: 3 mm2

19. Axle thread: M12

20. Hall sensor phasing angle: 120 degree

21. Type of Sensor: Hall Sensor(3pcs)

22. Working Temperature: 70 degrees, Peak 120 degree

23. Cooling method: Air cooling

24. Waterproof Grade: IP67

25. W./ G..W. : 11kgs / 12kgs

Controller Specification:-

1. Key Features :

    Very Easy connect.
    Silent Motor Operation.
    Soft start can be adjusted.
    High quality Fins for Heat Dissipation.
    Can match with almost all BLDC Motor.

2. Main Functions

      3 - Speed Mode

     Sport Mode

     Reverse

     High Brake

 Wiring Details:-

Note

We are supplying components some of the components are already CMVR approved or we can get approval  with these components  you can develop  new models or conversion  kits

According to the model complying with CMVR is the customer's duty.
