Dispatch time 15 days after receiving payment.Note : After purchase of kit customer , business associate or experience centre has to install and complete RTO registration process through GoGoA1.com RTO approved Retrofit centre only . Fees of installation and RTO document preparation Rs.5000/- will be collected by RFC
CMVR AIS 156 part II approved LiFepo4
Battery and charger warranty will be provided by battery and charger Manufacturer with there warranty terms .
Kit only motor and controller will be covered under one year service warranty , if need to replace any part for repairing customer has to pay replacement part price . if component are not in repairing condition customer need to purchase new component .
Repairing or refurbishment except kit fitting will be charged at actual by RFC

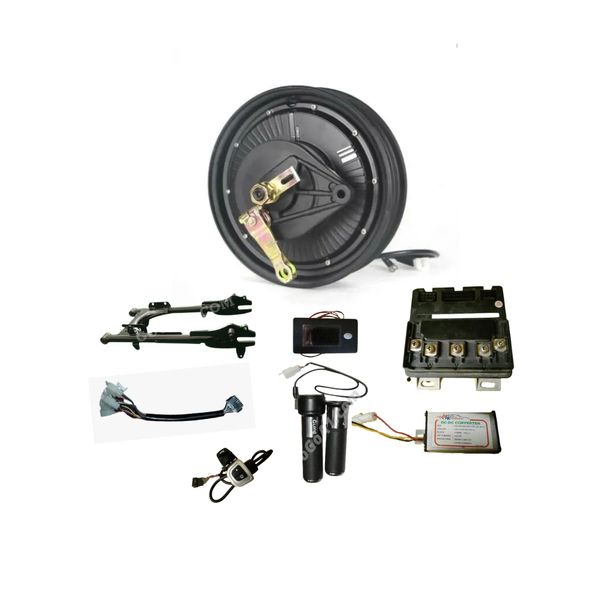

Kit includes Motor with drum brake, Controller, Throttle, Dc to Dc Converter, wiring harness, Universal switch, Swing arm, Antitheft, DC-MCB & Battery SOC

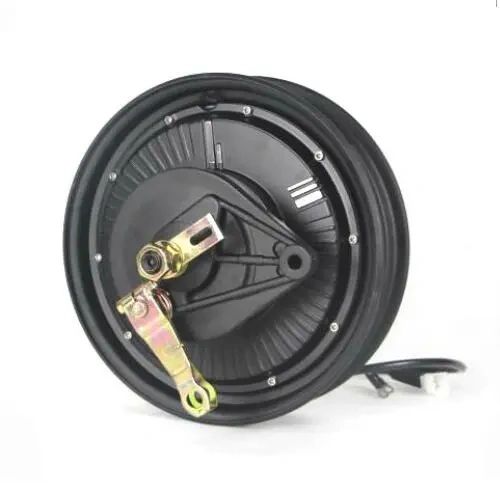

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle out with 10inch rim
3. Rim size and material:2.15-10 Iron rim
4. Matching Tire: 3.0-10, 3.5-10
5. Magnet Height: 30MM
6. Pole Pairs: 23 pairs
7. Rated Power: 1000W
8. Max Power: 2000W
10. Speed: 40-50km/hr
11. Max No-load RPM: 620-650RPM
12. Max Torque: 32N.M
13. Max Efficiency: 89-90%
14. Rated current:23A
15. Max current:40A
16. Brake type: Drum brake
17. Rear Fork width for installation: 200mm
18. Cross Section of Phase wire: 3 mm2
19. Axle thread: M12
20. Hall sensor phasing angle: 120 degree
21. Type of Sensor: Hall Sensor(3pcs)
22. Working Temperature: max 60 degree
23. Cooling method: Air cooling
24. Waterproof Grade: IP67
25. W./ G..W. : 11kgs / 12kgs
1. Key Features :
Very Easy connect.
Silent Motor Operation.
Soft start can be adjusted.
High quality Fins for Heat Dissipation.
Can match with almost all BLDC Motor.
2. Main Functions
3 - Speed Mode
We are supplying components some of the components are already CMVR approved or we can get approval with these components you can develop new models or conversion kits
According to the model complying with CMVR is the customer's duty.
