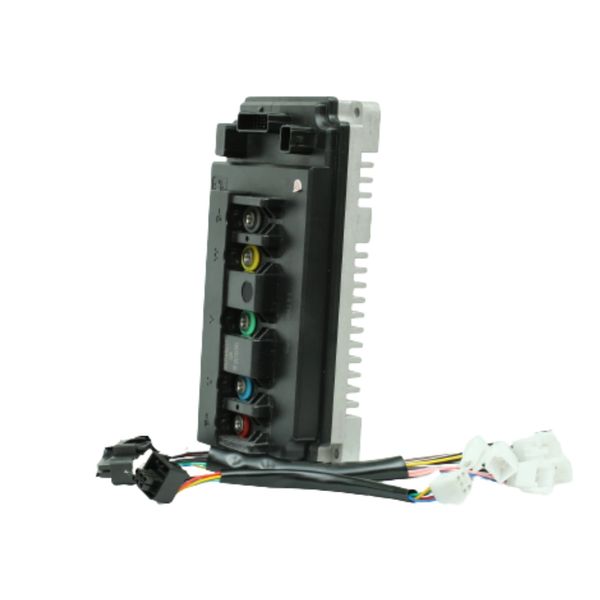

GOGOA1 VOTAL EM100 72V 65A Regenerative Sine Wave CAN Enabled Controller
GOGOA1 regenerative Sine wave controller is designed for our mid-drive motor which can match successfully.
Generally, we adjust the parameters before the delivery, if you want to modify the parameters pls. be careful.
1. Key Features
Very Easy connect.
Silent Motor Operation.
Soft start can be adjusted.
High quality Fins for Heat Dissipation.
Can match with almost all BLDC Motor.
2. Dimension and Weight
Size: 218 x 124 x 62 mm.
Weight: 1.650kg
3. Technical Specifications
Operating Voltage : 72V
Lower Cutoff Voltage : 63V
Upper Cutoff Voltage : 89V
Rated Current : 65A
Peak Current : 100A
Waveform Type : Sinusoidal
IP Rating : IP 67 (Water Resistance)
4. Main Functions
3 - Speed Mode
Sport Mode
Reverse
High Brake (Regenerative)
Wiring Details :-
