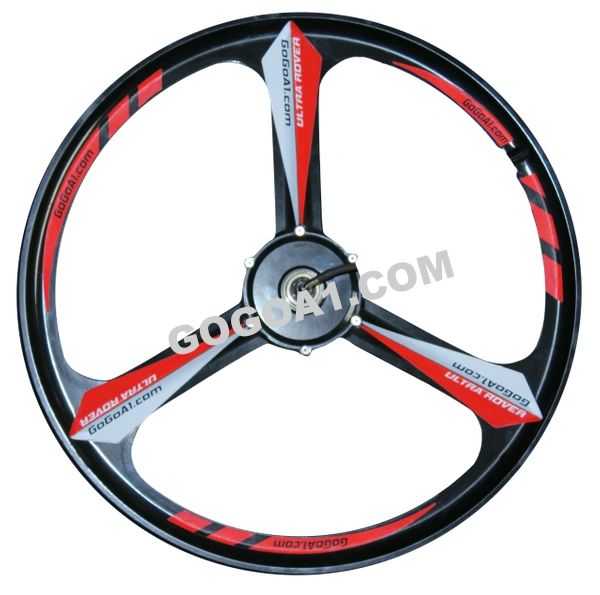

ULTRA ROVER 36V 250W 26-inch high efficient Magnesium wheel Hub motor
Description
26-inch Magnesium alloy wheel | |
Material |
AZ91D. Magnesium alloy |
Wall Thickness |
4.4 mm |
Contour Size |
99 mm x 93 mm x60mm |
Weight |
1450 g |
Specification
|
36V 250W high efficient Magnesium wheel Hub motor |
|
|
Position |
Rear Motor |
|
Wheel Diameter (inches) |
26 |
|
Construction |
Gear drive : BLDC hub motor with inbuilt planetary box |
|
Rated Voltage (DCV) |
36 |
|
n0 (rpm) |
290;250 |
|
Rated Power (W) |
250 |
|
nT (rpm) |
255;220 |
|
Max Torque |
32 N.m |
|
Efficiency |
83.5% |
|
Weight (kg) |
3 |
|
Noise Grade (dB) |
<55 |
|
Operating Temperature |
-20 to 45℃ |
|
Reduction Ratio |
1:4.42 |
|
Color |
Black |
|
Application |
|
|
Mounting Parameters |
|
|
Brakes |
Disc Brakes |
|
Max Housing Diameter (mm) |
134 |
|
Cabling Route |
Shaft Side, Ride |
|
Cable Length (mm), Connection Type |
250 |
|
Magnesium Wheel Diameter |
26 Inch |
Diagram
Other Details
|
Dimensions |
|
|
Dimension A |
77.3 mm |
|
Dimension B |
43 mm |
|
Dimension C |
Ф136 mm |
|
Dimension D |
Ф122 mm |
|
Dimension E |
Ф44 mm |
|
Dimension F |
Ф33 mm |
|
Dimension G |
2-M12 x 1.25 – 6g |
|
Dimension H |
5.5 mm |
|
Dimension I |
22 mm |
|
Dimension J |
9 mm |
|
Dimension K |
1 3/8 – 24 UNF -2A |
|
Dimension L |
15.25 mm |
|
Dimension WL |
62 mm |
|
Dimension WR |
73 mm |
|
Dimension OLD |
135 mm |
